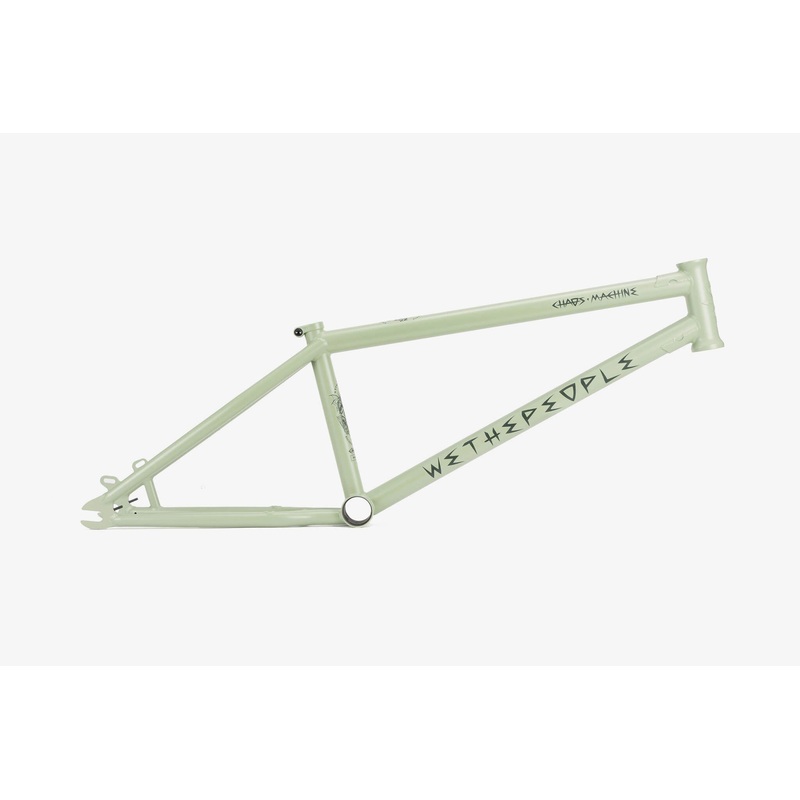

The We The People CHAOS MACHINE BMX Bike Frame features long and stable geometry, combined with Wethepeoples legendary frame-building technology making it one of the meanest and toughest rigs in the game.
We worked with Aussie trail boss and BMX lifer Tyson Jones-Peni on an all-out trail and bowl roasting machine. Tyson isnt scared to go fast and hit the mainline with some serious speed so we equipped his signature steed with mounts for a disc brake (and a regular u-brake) making it the first frame of its kind and perfect for riders needing some upgraded stopping power.
From the super long 14″+ chainstay to the unique detailing on the seat stay bridge and head tube, the Chaos Machine frame is one of the most signature frames WTP has ever made.
Product Specifications:
- TUBING:butted, Japanese seamless 4130 crmo tubing
- BOTTOM BRACKET: 74mm mid size
- HEAD TUBE: 127mm cnc machined and heat-treated, integ. h/set, brazed on badge
- DROPOUTS: Minimal size, not suitable for pegs, 6mm cnc machined heat-treated crmo, integrated chain tensioners
- BRAKES: disc mount for 140-160mm rotor AND u-brake mounts, frame comes with repl. brake hardware
- WEIGHT: 2.40kg (5.3lbs) 21.35″ tt
SPECIAL FEATURES:
- Tyson Jones-Peni signature trail/transition frame
- Long and stable trail geometry
- IS disc mount for 140mm-160mm rotors & removable u-brake mounts
- Unique disc brake mount works in multiple chain stay positions
- 127mm tall head tube for less spacers with an uncut fork
- Larger radius stay tubing for a stiffer and stronger back end
- Cnc machined seat stay bridge
- Disc brace on stays for extra braking stiffness
- Larger 1.8mm welding at head tube
- Investment cast seat clamp
- Wider rear triangle allows clearance for a 2.4″ tire
- WTP top tube and down tube gusset
Geometry:
- A – TOP TUBE LENGTH:21″, 21.35″ or 21.7″
- B – CHAIN STAY LENGTH:14″ – 14.75″ / optimised for 14.1″/14.35″/14.7″ with 30-9 gearing
- C – HEAD TUBE ANGLE:74.25
- D – SEAT TUBE ANGLE:71
- E – BB HEIGHT:11.5″
- F – STANDOVER HEIGHT:9.5″
