IN STOCK WITHIN 1-2 WEEKS. Pre-order now..!!

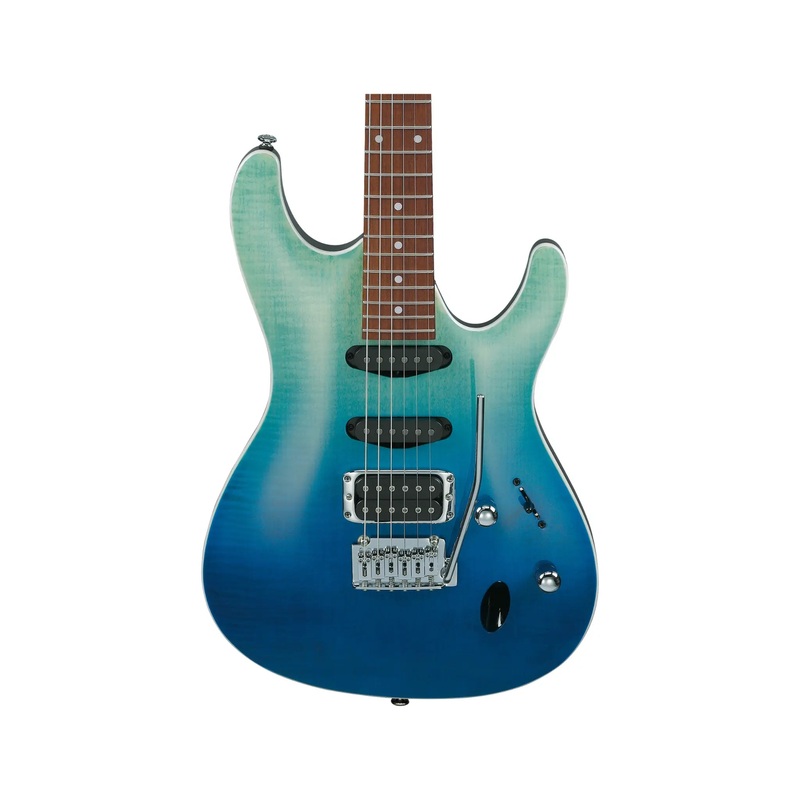

Ibanez SA260FM BRG

Blue Reef GradationSummary

The Ibanez SA260FM BRG (Blue Reef Gradation) blends elegant aesthetics with exceptional playability. Featuring a Flamed Maple top, Okoume body, Maple neck, and Jatoba fingerboard, this SA model delivers versatility, comfort, and a wide tonal range thanks to its S-S-H pickup configuration.

Whether you’re playing clean, crunchy, or high-gain tones, the Resolution Single pickups paired with the Quantum humbucker provide clarity, punch, and dynamic response.

Specifications

• Model: Ibanez SA260FM BRG
• Finish: Blue Reef Gradation
• Neck Type: SA Maple Neck
• Top: Flamed Maple
• Body: Okoume
• Fretboard: Jatoba w/ White Dot Inlays
• Frets: 22 Medium Frets
• Bridge: T102 Tremolo
• String Space: 10.5 mm
• Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
• Strings: D’Addario EXL120 (.009.042)
• Hardware Color: Chrome

Neck Dimensions

• • Scale :
  • 648mm/25.5″
  • a : Width
  • 42mmat NUT
  • b : Width
  • 57mmat 22F
  • c : Thickness
  • 19.5mmat 1F
  • d : Thickness
  • 21.5mmat 12F
  • Radius :
  • 305mmR

• Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard

Electronics

• Neck Pickup: Resolution Single (Passive/Ceramic)
• Middle Pickup: Resolution Single (Passive/Ceramic)
• Bridge Pickup: Quantum Humbucker (Passive/Ceramic)
• Controls: Volume, Tone
• Switching: 5-Way Pickup Selector

The S-S-H configuration provides a versatile tonal palettefrom bright single-coil clarity to full humbucker power.

Switching System

When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the neck pickup and the center pickup are selected. When the switch is in center position, center pickup is selected. When the switch is in between the center and bridge position, center pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.

Controls

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

Features

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

Maple neck

The Maple neck provides stability and bright tonal character.

T102 tremolo

The T102 bridge with 10.5mm string spacing allows easier picking across strings.

Graceful 3D Shaped body

This guitar is light enough for amazing comfort, dense enough to provide the tone and sustain that players expect from its 3D shaped body.

Resolution / Quantum S-S-H pickups

Resolution single-coil pickups and one Quantum humbucker pickup provide a well-balanced tonal array.

5-way pickup selector switch

Wired through a 5-way pickup selector switch, the SSH pickup configuration can be combined in a variety of configurations that create a wide palette of tonal options.
