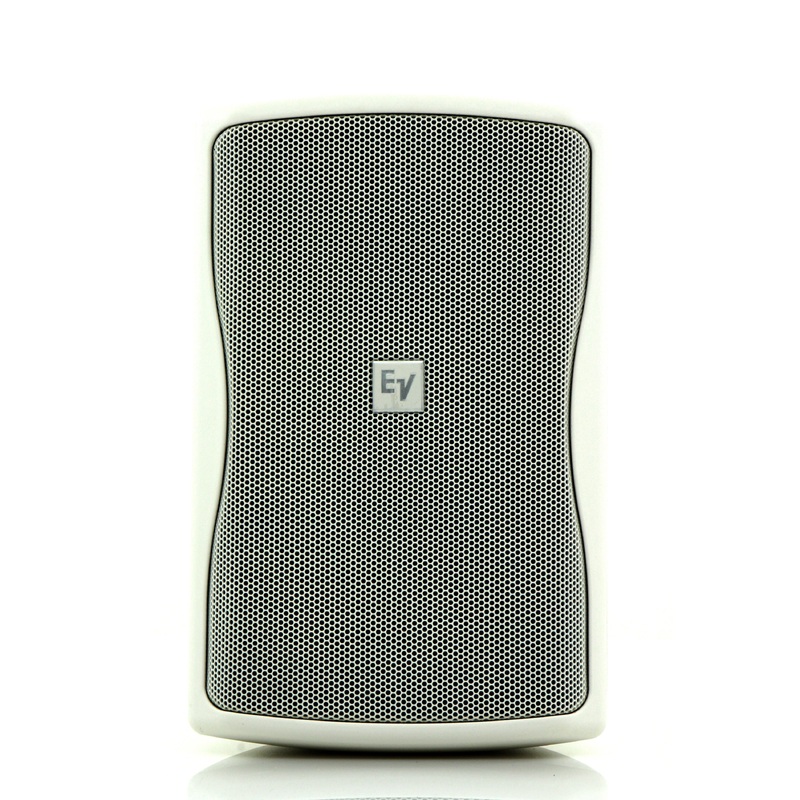

Electro-Voice ZX1I-90W 8-Inch Two-Way Passive Full-Range Hybrid Loudspeaker – White

Superior Performance with Exceptional Reliability – The Electro-Voice ZX1I-90W 8-Inch Two-Way Passive Full-Range Hybrid Loudspeaker – White

The ZX1is long excursion, high output EV8L 8 woofer with a weatherized treated cone delivers smooth low frequency performance with exceptional reliability.

• Smooth, wide frequency response
• Ideal for mains, fills, or monitors
• Velocity-compensated port for exceptional LF
• Long-excursion weather-treated EV8L woofer
• 1.25-inch DH2005 titanium HF compression driver
• Rotatable 90 x 50 horn for flexible coverage
• Passive crossover with full-band overload protection
• High sensitivity, 123 dB maximum SPL
• Power handling: 200 W continuous, 800 W peak
• High-impact polypropylene enclosure
• Patented ASC (Automatic Saturation Compensation)
• Also available in 70/100 volt transformer version
• Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket

A sophisticated crossover network integrates it with the DH2005, a 114 – inch voice coil true compression driver with extended frequency response. The system also features full overload protection for reliable, long term operation.

The Electro-Voice ZX1i features a lightweight, sealed enclosure that is inherently water resistant. The addition of a multilayer grille and weatherized components enable the ZX1i to perform under many environmental conditions. An optional weatherized input panel cover with a gland nut is available for additional protection.

SPECIFICATIONS

• Frequency Response: (-3 dB) 60 Hz – 20 kHz
• Frequency Range: (-10 dB) 48 Hz – 20 kHz
• Rec. Hi-pass Frequency: 40 Hz
• Axial Sensitivity: 94 dB (1W/1m)
• Max Calculated SPL: 123 dB
• Coverage (H x V): 90 x 50
• Rated System Power: 200 W Cont., 400 W Prog., 800 W Peak
• LF Transducer: EV8L, 203 mm (8 in) Driver
• HF Transducer: DH2005, 25 mm (1 in) Exit Compression Driver
• Crossover Frequency: 1.7 kHz
• Nominal Impedance: 8
• Minimum Impedance: 6
• “T” Version Wattage Taps: 70V – 6, 12.5, 25, 50, 100, 8 by p0V – 12.5, 25, 50, 100, 8 bypass
• Connectors: 4-Pin Phoenix Connector
• Enclosure Material: ABS resin
• Suspension: Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket
• Grille: Polyester Powder Coated, 18GA Galvanized Steel

Weight and Dimensions

• Dimensions
• Width: 282mm (11 in)
• Height: 451mm (18 in)
• Depth: 263mm (10 in)
• Net Weight: 8.4kg (18.5 lb) without Transformer, 10.4kg (23.0 lb) with Transformer
• Shipping Weight: 10.2 kg (22.5 lb) without Transformer, 12.3 kg (27.0 lb) with Transformer

Manufacturer:Electro-Voice
Model:ZX1I-90W
SKU:I190412-N-5-WHXE
UPC: 800549682497
